AWS Private CA

To allow Golioth to use your AWS Private Certificate Authority service as a PKI provider for your project, you need to go through a few steps in the AWS Console before you can configure a connection from Golioth.

For information about how you can establish a CA in AWS Private CA and issue end-entity certificates, please refer to the official AWS documentation.

Configuring AWS

To allow Golioth to securely connect directly to your AWS Private CA service, you'll need to create an IAM policy with the required permissions, then assign that to a user.

1. Create a policy

Golioth requires a few permissions in the AWS Private CA service to be able to authenticate devices and rotate certificates.

As none of the default policies fit the permissions requirements exactly, we'll start by creating a new policy specifically for the integration with Golioth.

As an admin or an IAM user with the required permissions, navigate to the IAM Policy section, and click Create Policy. Using the JSON Policy editor, add the following policy:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": [
                "acm-pca:ListCertificateAuthorities",
                "acm-pca:GetCertificateAuthorityCertificate",
                "acm-pca:GetCertificate"
            ],
            "Resource": "*"
        },
        {
            "Effect": "Allow",
            "Action": [
                "acm-pca:IssueCertificate"
            ],
            "Resource": "arn:aws:acm-pca:*:*:certificate-authority/*",
            "Condition": {
                "ArnLike": {
                    "acm-pca:TemplateArn": [
                        "arn:aws:acm-pca:*:*:template/EndEntityClientAuthCertificate_APIPassthrough/V*"
                    ]
                }
            }
        }
    ]
}

The first statement in this policy enables Golioth to iterate through your certificate authorities, and retrieve their certificates. The second statement allows Golioth to issue device certificates using the EndEntityClientAuthCertificate_APIPassthrough/V1 template.

tip

If you do not need certificate rotation capabilities, the AWSPrivateCAReadOnly standard policy can be used instead.

Save this policy with a recognizable name and description.

2. Create an IAM user

Golioth connects to your AWS Private CA service as an IAM user. Although it's possible for Golioth to authenticate as an existing user, we strongly recommend establishing a dedicated user to maintain a narrow set of permissions.

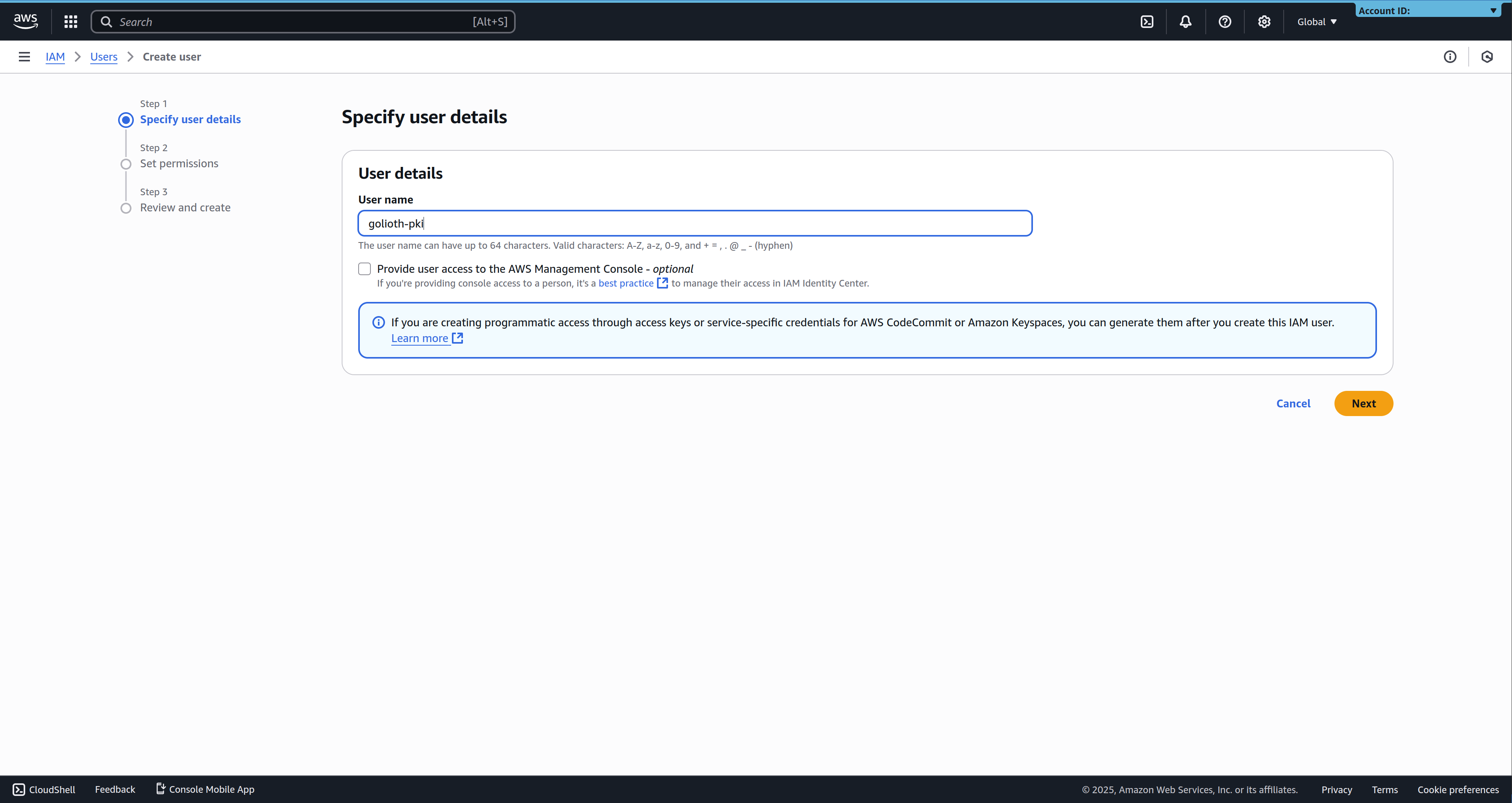

As an admin or an IAM user with the required permissions, navigate to the IAM User Management Dashboard in the AWS Console, and click Create User.

Pick a recognizable user name, and click Next to go to the permissions screen.

3. Attach the policy to the user

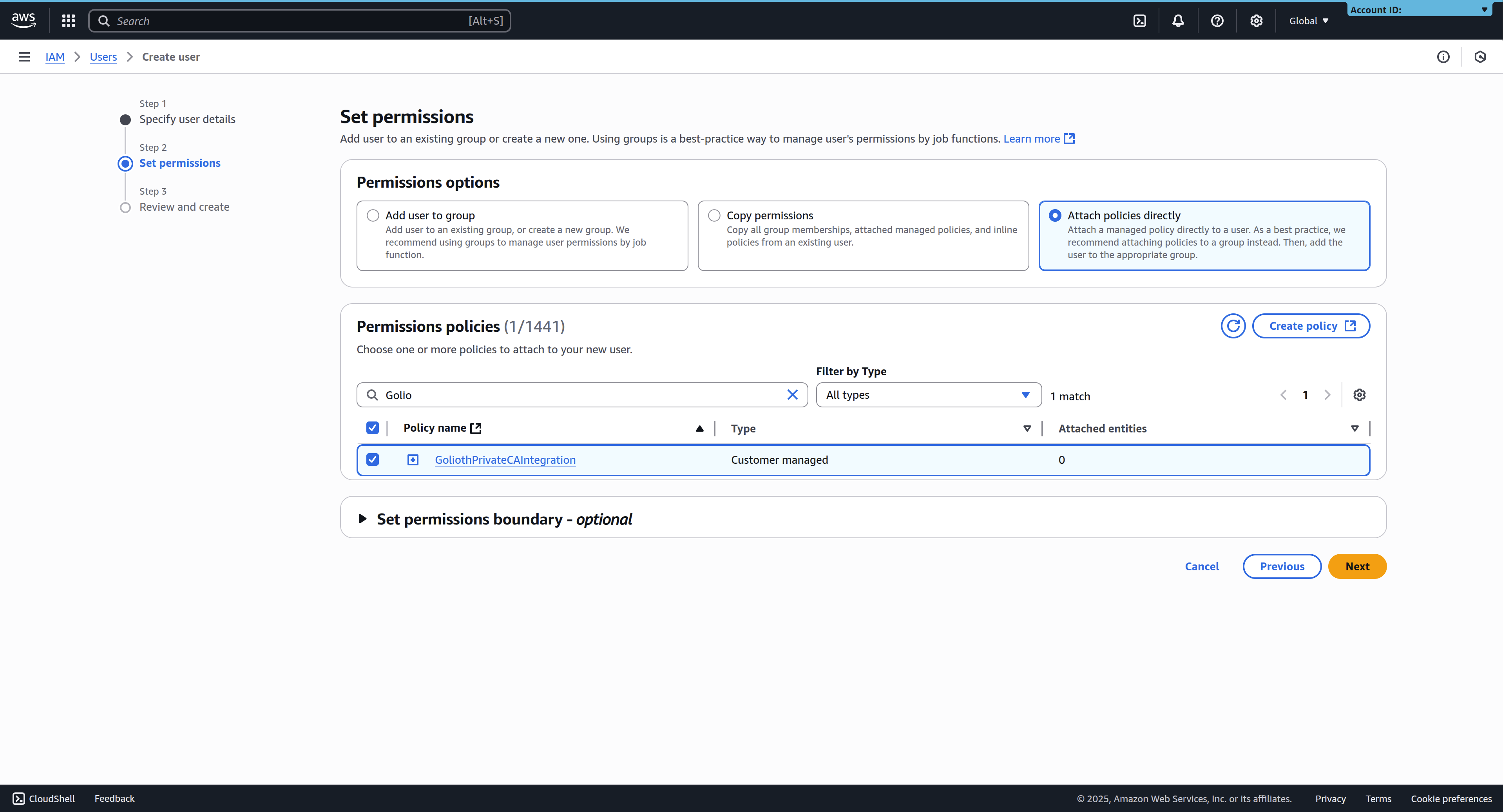

In the "Set Permissions" screen, select Attach policies directly, and search for the policy created in step 1. Select the policy, and click Next to go the final user creation page.

Policies can either be attached to the user directly when you create it, or by assigning the user to a user group with the required permissions.

4. Create an access key

Once the user is created with the required permissions, you'll need to create an access key that Golioth can use to authenticate as that user.

Follow the AWS documentation for instructions on how to create an access key for an IAM user. Note that the secret access key is only available during the creation process, and must be saved before leaving the page.

Connecting to AWS from the Golioth Console

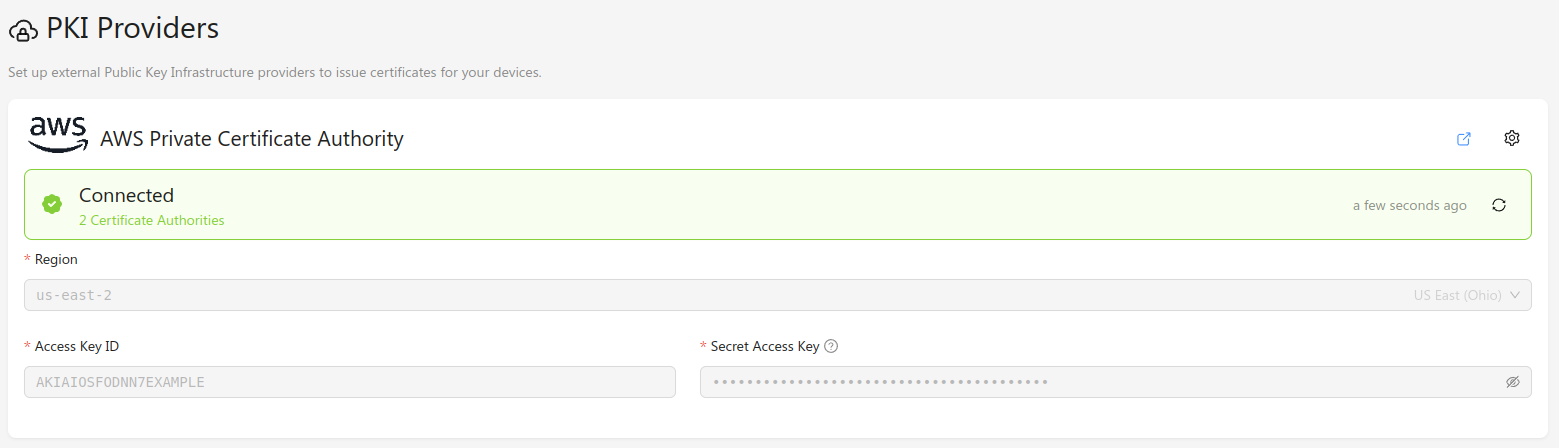

Once you have an AWS IAM user with the required permissions, you can configure Golioth's connection to the AWS Private CA from the Golioth Console. Navigate to the PKI Providers section in the sidebar, and click Add Provider. In the modal window, select AWS Private Certificate Authority, and the correct region for your AWS instance. Add the Access Key ID and Secret Access Key that you created in the AWS Console, and click Connect. The provider will be added to the list of known providers, and a provider status check will run.

If everything is configured correctly, the provider status should change to "Connected", and list the number of available certificate authorities.

Issuing Device Certificates

Device certificates are End Entity Certificates in AWS.

As outlined in the Certificate ID section, the device certificate subject needs to include the following attributes:

• Organization: the device's project ID
• CommonName: a unique device certificate ID

Other subject attributes are ignored.

When performing certificate rotation, Golioth will submit certificate signing requests to the AWS Private CA with the EndEntityClientAuthCertificate_APIPassthrough/V1 template. The request will be submitted with an API passthrough value containing the subject attributes above.
